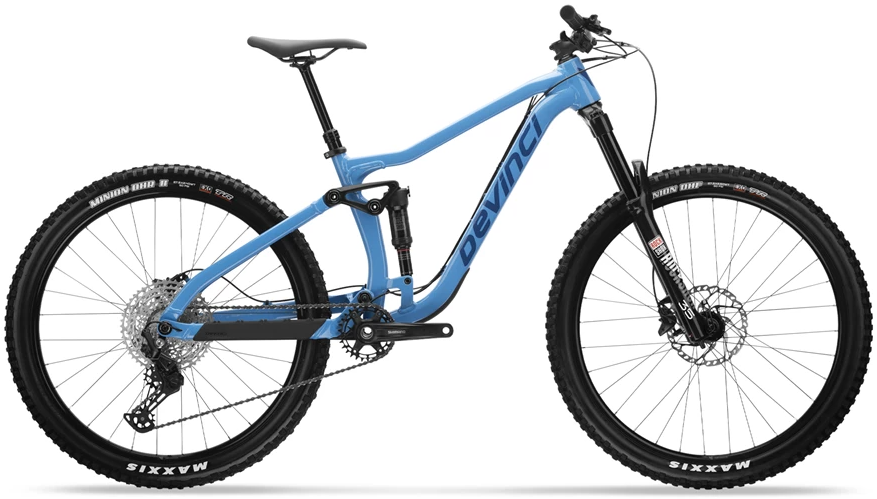

Devinci Marshall 27 Deore 12S
This item is currently not available.
Details
TRAIL
The Marshall is a Made in Canada, made for the people, light-up the trails dual-suspension mountain bike. At its heart, the all-new 130mm travel aluminum frame delivers Split-Pivot performance and reliability with key features like Boost spacing, size-appropriate wheel sizes, a dropper post, frame protection and a lifetime warranty-all in a more wallet-friendly package. Paired with a 140mm fork and reliable parts, the Marshall delivers no-fuss riding for no-nonsense riders.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| ST (mm) | 370 | 400 | 420 | 445 | 495 |
| SA | 76.8° | 76.7° | 77° | 76.9° | 76.8° |
| HA | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| TT (mm) | 555 | 579 | 603 | 626 | 650 |
| REACH (mm) | 420 | 440 | 460 | 480 | 500 |
| CS (mm) | 430 | 430 | 435 | 435 | 435 |
| WB (mm) | 1143 | 1167 | 1203 | 1227 | 1251 |
| BBH (mm) | 337 | 337 | 337 | 337 | 337 |
| SOH (mm) | 717 | 744 | 749 | 767 | 797 |
| STACK (mm) | 575 | 585 | 621 | 630 | 639 |
| HT (mm) | 95 | 105 | 105 | 115 | 125 |
| Size | Rider Height (cm) |
|---|---|
| X-Small | 150-161 |
| Small | 160-170 |
| Medium | 169-179 |
| Large | 178-188 |
| X-Large | 187-198 |
Specs
| Frame | Aluminum Optimum G04 130mm |
|---|---|
| Fork | RockShox 35 Silver TK Solo Air 140 | 44 Offset |
| Rear Shock | Rockshox Deluxe Select R Debonair | 2T | 210x50 |
| Rims | V2 Comp | 29mm inner | TR |
| Hubs |
Front: Formula DC-711 | Sealed | 6bolts | TA 15x110mm Rear: Formula TA 12x148 BOOST |
| Spokes | Sapim Stainless 14G w/Nylok |
| Tires | Maxxis Minion DHF | 27.5x2.5wt | DualCompound Exo TR |
| Bottom Bracket | Shimano BB MT501 | BSA | 68/73mm |
| Crankset | RaceFace Ride 32T |
| Shifters | Shimano Deore M6100 | 12s | I-spec EV |
| Rear Derailleur | Shimano Deore M6100 | 12s |
| Cassette/Freewheel | Sunrace 12s | 11-51T |
| Chain | Shimano Deore M6100 | 12s |
| Brakes | Magura MT30 | 4 Pistons |
| Rotors | Magura Storm HC | 180mm |
| Handlebars | V2 Pro | B:35mm | R:15mm | W:780mm |
| Tape/Grips | Devinci Performance | w/lock-on |
| Stem | V2 Pro | B:35mm | L:50mm | 0° |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | TranzX Dropper | 31.6mm | 1x Lever |
| Saddle | Devinci |
* Subject to change without notice.
