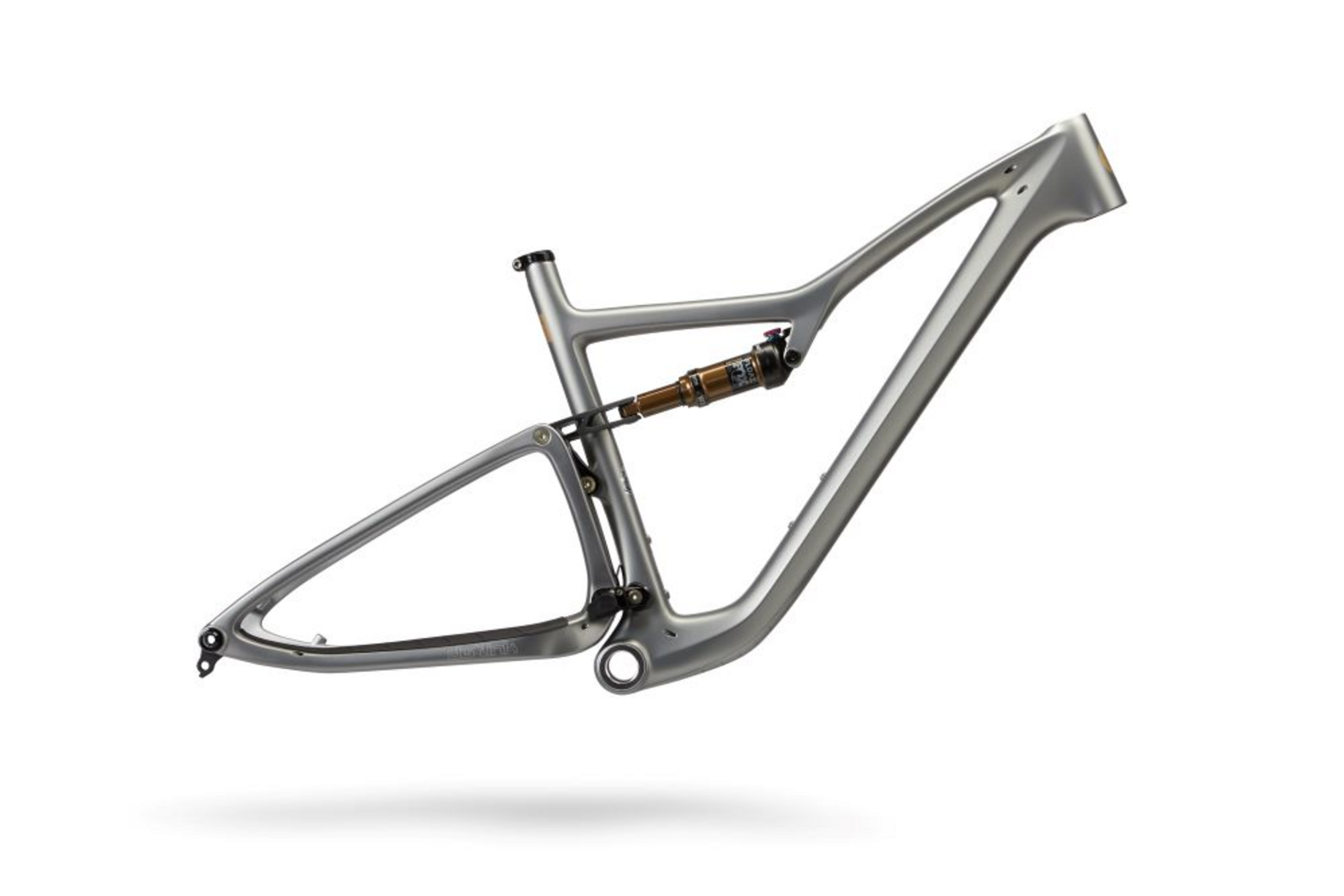

Ibis Exie Frameset

Ibis Exie Frameset
  • Color: Silver
  • Color: Burgundy
  • Color: Clear
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

Introducing the Exie for all. Sharing the same geometry and performance as the World Cup winning Exie USA, our newest offering is handbuilt in Vietnam. It’s everything we love about our US made offering (albeit ~250g heavier) in a wallet-friendly build.

*Specs may vary from image displayed*

Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube Length (mm)356 406457508
Top Tube Length (mm)584 613644675
Head Tube Length (mm)85 95110135
Chainstay Length (mm)435 435435435
Seat Tube Angle73.8° 73.8°74.8°75.9°
Head Tube Angle67.2° 67.2°67.2°67.2°
Wheelbase (mm)1128 115812021253
Stack (mm)582 592606630
Reach (mm)413 439478519
Standover (mm)722 727748754
Trail (mm)110 110110110
BB Drop (mm)28 282828
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small152 - 163 5'0" - 5'4"
Medium160 - 173 5'3" - 5'8"
Large170 - 185 5'7" - 6'1"
X-Large183 - 196 6'0" - 6'5"

Part Numbers

Option UPC MPN
Silver / Medium / 29-inch 840345313140 EXC2SLS00000025
Burgundy / X-Large / 29-inch 840345313188 EXC4BGS00000025
Clear / X-Large / 29-inch 840345313195 EXC4CLS00000025
Burgundy / Large / 29-inch 840345313157 EXC3BGS00000025
Clear / Small / 29-inch 840345313102 EXC1CLS00000025
Silver / Small / 29-inch 840345313119 EXC1SLS00000025
Clear / Large / 29-inch 840345313164 EXC3CLS00000025
Burgundy / Small / 29-inch 840345313096 EXC1BGS00000025
Silver / Large / 29-inch 840345313171 EXC3SLS00000025
Silver / X-Large / 29-inch 840345313201 EXC4SLS00000025
Burgundy / Medium / 29-inch 840345313126 EXC2BGS00000025
Clear / Medium / 29-inch 840345313133 EXC2CLS00000025
