Details

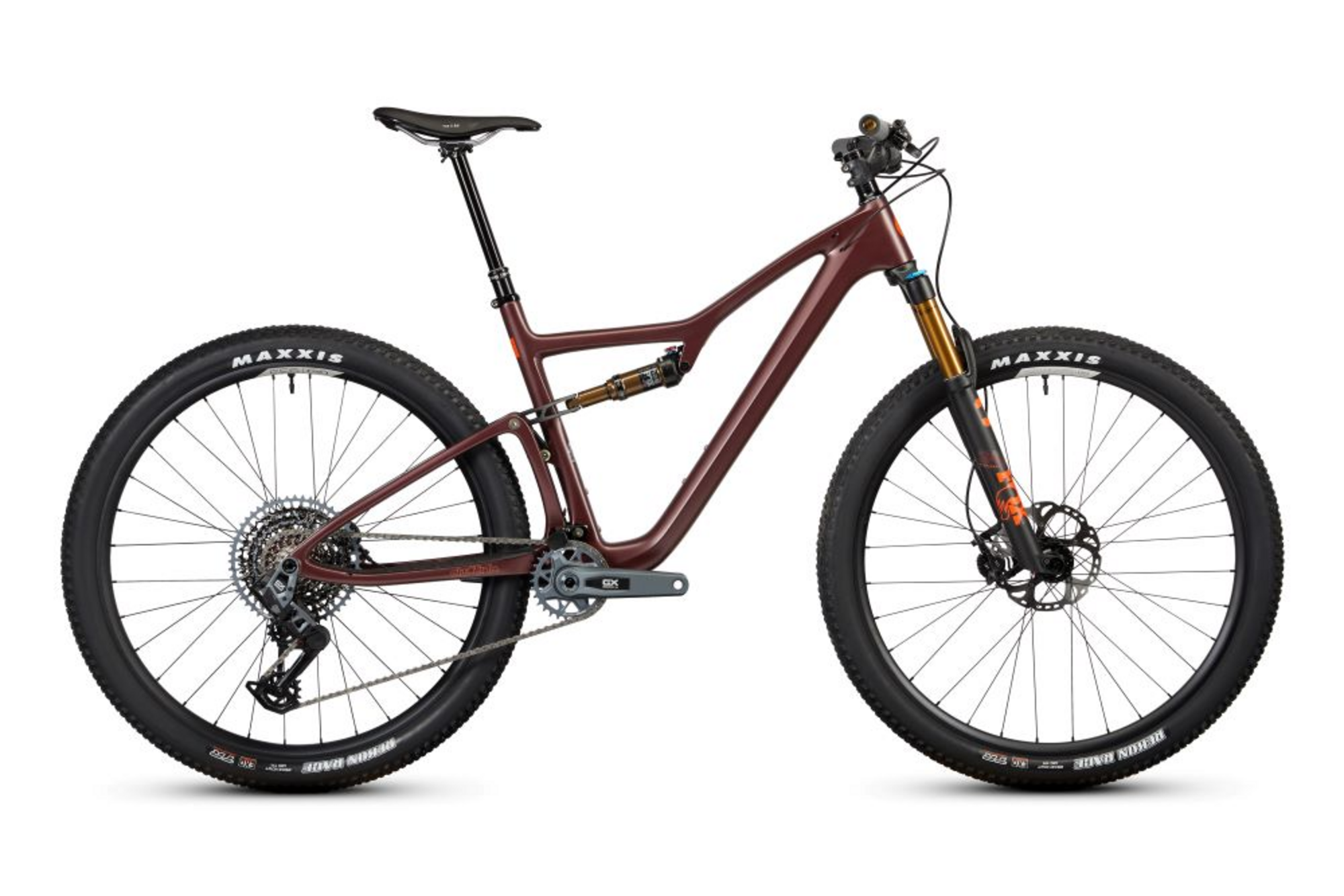

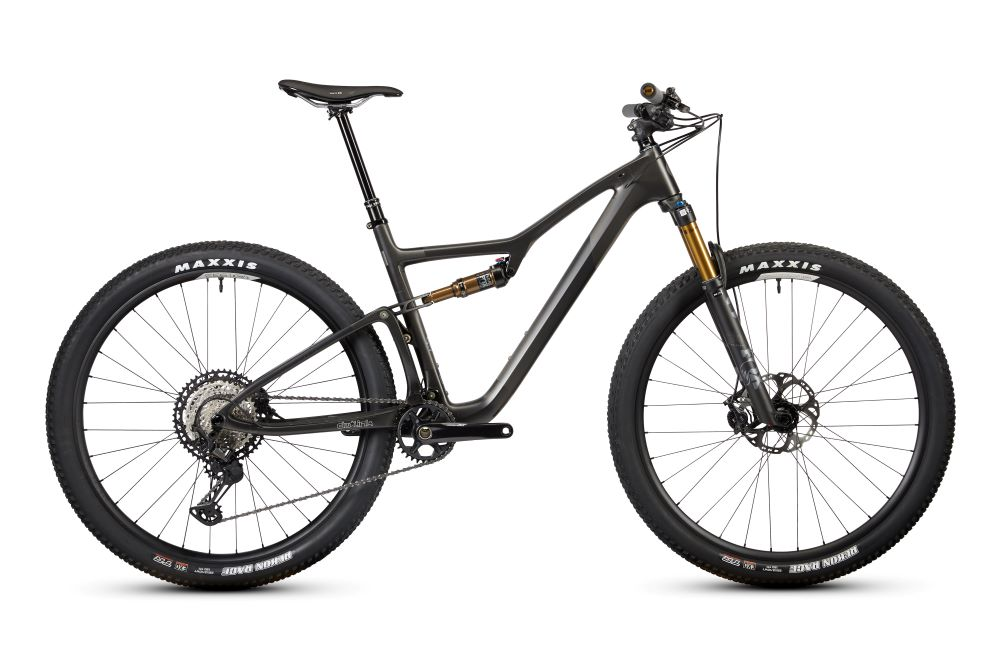

Introducing the Exie for all. Sharing the same geometry and performance as the World Cup winning Exie USA, our newest offering is handbuilt in Vietnam. It’s everything we love about our US made offering (albeit ~250g heavier) in a wallet-friendly build.
*Specs may vary from image displayed*
Frame Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
Seat Tube Length (mm) | 356 | 406 | 457 | 508 |
Top Tube Length (mm) | 584 | 613 | 644 | 675 |
Head Tube Length (mm) | 85 | 95 | 110 | 135 |
Chainstay Length (mm) | 435 | 435 | 435 | 435 |
Seat Tube Angle | 73.8° | 73.8° | 74.8° | 75.9° |
Head Tube Angle | 67.2° | 67.2° | 67.2° | 67.2° |
Wheelbase (mm) | 1128 | 1158 | 1202 | 1253 |
Stack (mm) | 582 | 592 | 606 | 630 |
Reach (mm) | 413 | 439 | 478 | 519 |
Standover (mm) | 722 | 727 | 748 | 754 |
Trail (mm) | 110 | 110 | 110 | 110 |
BB Drop (mm) | 28 | 28 | 28 | 28 |
Frame Size | Rider Height (cm) | Rider Height (in) |
---|---|---|
Small | 152 - 163 | 5'0" - 5'4" |
Medium | 160 - 173 | 5'3" - 5'8" |
Large | 170 - 185 | 5'7" - 6'1" |
X-Large | 183 - 196 | 6'0" - 6'5" |
Specs
Pedals | Sold Separately |
---|---|
Fork | Fox Factory Series, 34 SC Grip SL Remote, 120mm, 44mm offset, 29", 110x15mm |
Hubs | Ibis Hubs |
Rims | Ibis 933 Aluminum Rim |
Stem | Industry Nine A318 40mm |
Chain | GX Transmission Chain |
Tires | Maxxis Rekon Race 29" x 2.4" Exo/TR WT |
Brakes | Shimano XT M8100 |
Rotors | Shimano SM-RT86 180/160 |
Saddle | WTB Silverado, 142mm |
Wheels | Ibis S28 Carbon Rims, 29", Industry 9 Hydra Hubs |
Headset | Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower |
Crankset | GX Transmission Crankset 170mm |
Seatpost | Bike Yoke Revive Dropper 160mm |
Shifters | Eagle AXS Pod Controller |
Chainrings | 30T Chainring |
Handlebars | Ibis 800mm Hi Fi Bar |
Rear Shock | Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression |
Tape/Grips | Lizard Skin Charger |
Brake Levers | Shimano XT M8100 |
Bottom Bracket | SRAM DUB BSA |
Rear Derailleur | GX Transmission AXS 12-Speed |
Cassette/Freewheel | SRAM XS-1275 10-52 Transmission |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Clear / Large / 29-inch | 840345312808 | EXC3CLSG2I92825 |
Burgundy / Medium / 29-inch | 840345312563 | EXC2BGSG2I92825 |
Silver / Large / 29-inch | 840345312860 | EXC3SLSG2I92825 |
Burgundy / Small / 29-inch | 840345312389 | EXC1BGSG2I92825 |
Clear / X-Large / 29-inch | 840345312983 | EXC4CLSG2I92825 |
Clear / Medium / 29-inch | 840345312624 | EXC2CLSG2I92825 |
Silver / X-Large / 29-inch | 840345313041 | EXC4SLSG2I92825 |
Burgundy / Large / 29-inch | 840345312747 | EXC3BGSG2I92825 |
Silver / Small / 29-inch | 840345312501 | EXC1SLSG2I92825 |
Burgundy / X-Large / 29-inch | 840345312921 | EXC4BGSG2I92825 |
Clear / Small / 29-inch | 840345312440 | EXC1CLSG2I92825 |
Silver / Medium / 29-inch | 840345312686 | EXC2SLSG2I92825 |
