Ibis HD6 XX Transmission Carbon Wheels

Ibis HD6 XX Transmission Carbon Wheels
  • Color: Traffic Cone Orange
  • Color: Enchanted Forest Green
  • Color: Lavender Haze
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

Introducing the HD6, the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.

GEOMETRY
The 29" front wheel, bol­stered by 180mm of trav­el, assures sta­bil­i­ty, whereas the 27.5" rear wheel allows for addi­tion­al maneu­ver­abil­i­ty. The 165mm of trav­el skill­ful­ly man­ages any fall­out. With a 64-degree head tube angle (one-degree slack­er than the cur­rent Rip­mo), a BB height sim­i­lar to Mojo HD5, and chain­stay length iden­ti­cal to the cur­rent Rip­mo (despite the 27.5" rear wheel), the bike main­tains an equi­lib­ri­um between agili­ty and stability.

FIVE SIZES
In order to place every size rid­er in the same position over the rear wheel, the HD's seat tube angles get steep­er as frame size increases. With four sizes, this would have result­ed in larger jumps in reach, so we added a fifth size. The small­er incre­ments across five sizes means that you can find just the right size. We encourage rid­ers to choose their bike size based on their desired reach and top tube measurements.

COIL COMPATIBLE
Our upper link sus­pen­sion lay­out is pro­gres­sive enough to be sen­si­tive off the top, yet sup­port­ive enough for the biggest hits. It is also com­pat­i­ble with all coil shocks, for those longer race stages that can tax air shock performance.

DW-LINK
The sus­pen­sion lay­out may be new, but it's still DW-Link. The inher­ent effi­cien­cy means you don't need an over­damped shock to climb well. Less shock damp­ing allows the wheels to stay plant­ed on the ground, pro­vid­ing more trac­tion and that hov­er-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.

TRACTION TUNE
Our cus­tom tuned front and rear sus­pen­sion fea­ture extra light high speed com­pres­sion and rebound damp­ing to deliv­er unpar­al­leled trac­tion. This allows the wheels to flut­ter through rough ter­rain like a tro­phy truck storm­ing through a set of whoops.

BUSHINGS
Tired of buy­ing bear­ings each sea­son? So were we. That's why we've strate­gi­cal­ly employed bush­ings where they're most effec­tive and bear­ings else­where. The IGUS bush­ings in our low­er link are not only lighter and stiffer, they're vir­tu­al­ly main­te­nance-free. We believe so strongly in them, we back them with free life­time replacement.

LIGHTWEIGHT PREMIUM CARBON
All our bikes are built from the high­est grade mate­ri­als and opti­mized for the best strength, weight, stiff­ness, and ride performance, no mat­ter how much you spend. The HD6 frame is sub 6 lbs without shock and our com­plete Enduro ready builds weigh as lit­tle as 32 lbs.

INTERNAL CABLE ROUTING
Bikes that look pret­ty on the out­side should look pret­ty on the inside. We use car­bon fiber tubes mold­ed with­in each frame. Push the cable in, watch it pop out, a beau­ti­ful moment indeed.

PROTECT YOUR INVESTMENT
A thick rub­ber down­tube pro­tec­tor deflects debris, while our chain­stay pro­tec­tor fea­tures thick raised sec­tions to help damp­en chain slap noise. And our sim­­ple-yet-ele­­gant link­age pro­tec­tors stop mud and rocks thrown by the tire, keep­ing your beau­ti­ful bike beautiful.

LIFETIME WARRANTY
If it's our fault, we'll fix it. Sim­ple as that.

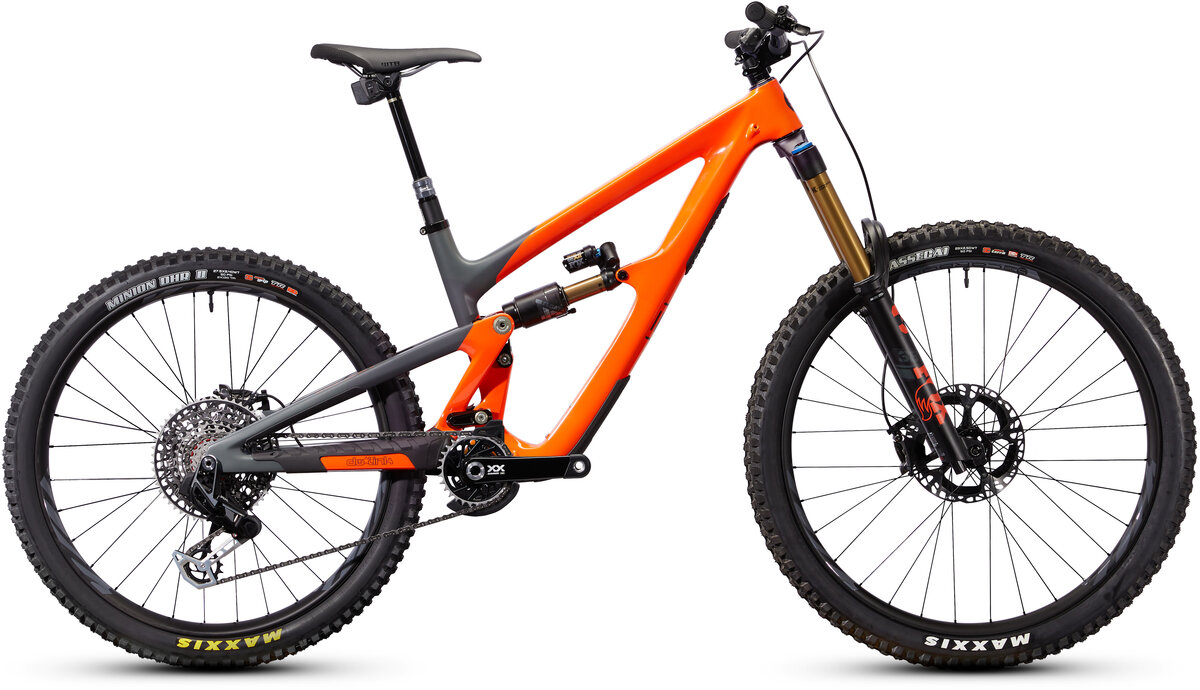

- Image is representational and may differ from build spec

Geometry

Sizes:
FRAME SIZESmallMediumX-MediumLargeX-Large
Seat Tube Length (mm) A 400 400 406 450 470
Top Tube Length (mm) B 585 610 630 655 685
Head Tube Length (4mm stack of lower cup not included) C 81 86 91 100 115
Chainstay Length (mm) D 435 435 435 435 435
Seat Tube Angle E 76° 76° 76.5° 77° 77.5°
Head Tube Angle G 64° 64° 64° 64° 64°
Wheelbase (mm) H 1202 1228 1256 1288 1328
BB Height (with 2.5WT Maxxis Assegai tires) 345 345 345 345 345
BB Drop (mm) K 30 30 30 30 30
Stack (mm) I 621 625 630 638 651
Reach (mm) J 430 454 480 508 541
Saddle height for seat tube angle F 650 700 745 790 830
Standover (mm) L 725 735 752 765 769
Trail (mm) 136 136 136 136 136
Fork Offset (mm) 44 44 44 44 44
Sizes:
Frame SizeRider Height (cm)
Small 158–168CM
Medium 165–175CM
X-Medium 173–183CM
Large 180–191CM
X-Large 188–201CM

Specs

Frame Carbon front and rear triangle
Fork Fox Float 38 Factory Series, 180mm, 29”, 110x15
Rear Shock Fox Float X2 Factory Series with EVOL, 230mm x 65mm
Wheels Ibis S35 Carbon Rims / 29" 27.5" / Industry 9 Hydra Hubs
Tires Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4”
Brakes SRAM Code RSC, 4 Piston
Crankset SRAM XX Eagle Transmission AXS, DUB, 32T Alloy Ring, 170mm,
Bottom Bracket SRAM DUB BSA
Shifters Eagle AXS Pod Ultimate Controller
Cassette/Freewheel SRAM XX Transmission 10-52
Rear Derailleur SRAM XX Eagle Transmission AXS
Rotors SRAM Centerline 200
Headset Cane Creek 40 ZS44/ZS56
Handlebars Ibis 800mm Hi Fi Bar
Chain SRAM XX Eagle Transmission, Flattop
Chain Guide MRP AMg SE
Tape/Grips Lizard Skin Charger Evo
Stem Industry Nine A318 S/M: 40mm, L/XL: 50mm
Seatpost SRAM Reverb AXS Dropper S: 125mm, M: 150mm, L/XL: 170mm
Saddle WTB Silverado

* Subject to change without notice.

Part Numbers

Option UPC MPN
Traffic Cone Orange / Small / 29-inch front / 27.5-inch rear 840345304469 HDC1ORSX2I935
Traffic Cone Orange / Medium / 29-inch front / 27.5-inch rear 840345304674 HDC2ORSX2I935
Traffic Cone Orange / X-Medium / 29-inch front / 27.5-inch rear 840345304889 HDC3ORSX2I935
Traffic Cone Orange / Large / 29-inch front / 27.5-inch rear 840345305091 HDC4ORSX2I935
Traffic Cone Orange / X-Large / 29-inch front / 27.5-inch rear 840345305305 HDC5ORSX2I935
Enchanted Forest Green / Small / 29-inch front / 27.5-inch rear 840345304445 HDC1GNSX2I935
Enchanted Forest Green / Medium / 29-inch front / 27.5-inch rear 840345304650 HDC2GNSX2I935
Enchanted Forest Green / X-Medium / 29-inch front / 27.5-inch rear 840345304865 HDC3GNSX2I935
Enchanted Forest Green / Large / 29-inch front / 27.5-inch rear 840345305077 HDC4GNSX2I935
Enchanted Forest Green / X-Large / 29-inch front / 27.5-inch rear 840345305282 HDC5GNSX2I935
Lavender Haze / Small / 29-inch front / 27.5-inch rear 840345304452 HDC1LVSX2I935
Lavender Haze / Medium / 29-inch front / 27.5-inch rear 840345304667 HDC2LVSX2I935
Lavender Haze / X-Medium / 29-inch front / 27.5-inch rear 840345304872 HDC3LVSX2I935
Lavender Haze / Large / 29-inch front / 27.5-inch rear 840345305084 HDC4LVSX2I935
Lavender Haze / X-Large / 29-inch front / 27.5-inch rear 840345305299 HDC5LVSX2I935
