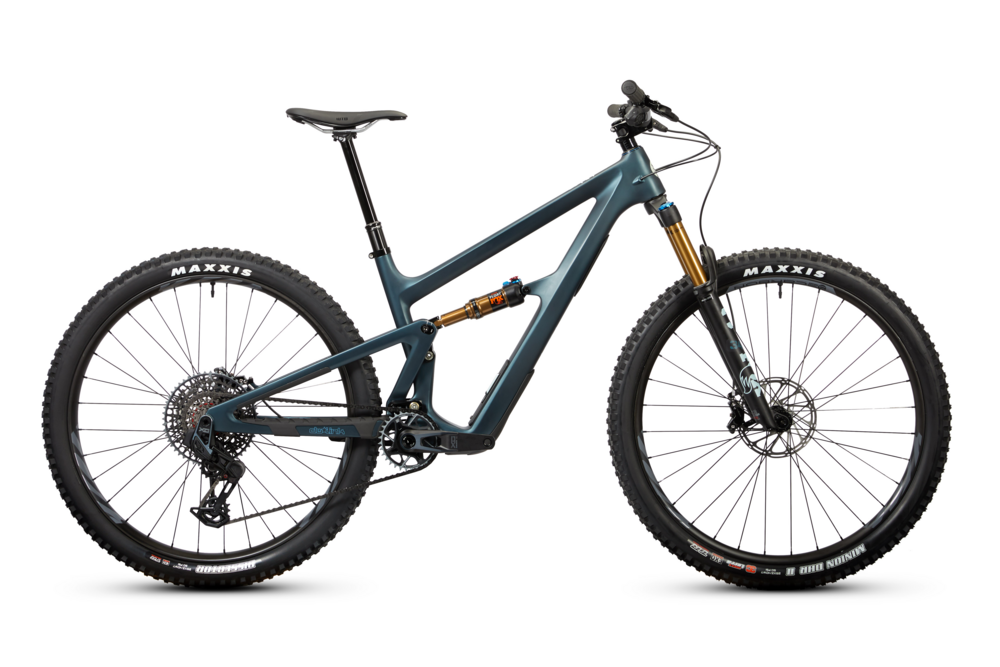

Ibis Ripley V5 XT, I9 Wheels

Ibis Ripley V5 XT, I9 Wheels
  • Color: Blue Hour
  • Color: Green Flash
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

Meet the Ripley, your new best friend for every trail adventure. The award-winning bike has been updated with more travel and slacker geometry, making it even more capable and fun. It rivals the speed of an e-bike uphill while offering snappy, playful performance with 130mm of ultra-efficient dw-link travel. Need to stash your snacks? The Ripley now features internal frame storage for all your stuff. Plus, with expanded size ranges, everyone gets the perfect fit. Whether you’re popping wheelies or conquering climbs, the Ripley is game.

*Specs may vary from image displayed*

Sizes:
Frame SizeSmallMediumExtra MediumLargeX-Large
Seat Tube (mm)395 400416457477
Top Tube (mm)577 604629654684
Head Tube (mm)85 95110125140
Chainstay 29er (mm)436 436437440442
Chainstay MX (mm)433 433434436438
Seat Tube Angle77.4° 76.9°76.9°77.4°77.9°
Saddle Height For Seat Tube Angle (mm)650 700745790830
Head Tube Angle64.9° 64.9°64.9°64.9°64.9°
Wheelbase (mm)1187 1211124112791321
Stack (mm)613 619629640650
Reach (mm)440 460483511545
BB Drop 29er (mm)48 45423936
BB Drop MX (mm)28 25221916
BB Height (mm)326 329332335338
Standover (mm)680 721744759772
Recommended Seatpost Drop (mm)140 170185213213
Crank Length (mm)165 165170170170

Specs

Pedals Sold Separately
Fork Fox Float 34 Factory Series Grip X 140mm, 29”, 110x15
Hubs Front Hub Industry 9 hydra, 110x15, 32 Hole
Rear Hub Industry 9 hydra, 148x12, 32 Hole
Rims S35 CARBON RIM
Stem Blackbird, 50mm
Chain Shimano XT M8100
Frame Ripley V5
Tires Front Tire: Maxxis DHR2 29" x 2.4" Exo TR
Rear Tire: Maxxis Rekon 29" x 2.4" Exo TR
Brakes Shimano XT M8120 4p
Rotors Shimano SM-RT86 180
Saddle WTB Silverado Fusion 142
Spokes Sapim Dlight Double Butted
Wheels S35 29 Carbon Industry 9 Front Wheel 110, S35 29 Carbon Industry 9 Rear Wheel 148 w/ MS Driver
Headset Cane Creek 40: ZS44/ZS56
Crankset Shimano XT M8100 24mm spindle, 30t Alloy Ring
Seatpost Bike Yoke Revive Dropper
Shifters Shimano XT M8100
Chainrings 30t Alloy Ring
Handlebars Ibis 35mm 800mm Hi Fi Bar
Rear Shock Fox Float Factory Series, DPS with EVOL, 210 x 52.5
Tape/Grips Lizard Skin Charger
Brake Levers Shimano XT M8120
Bottom Bracket Shimano XT MT800
Rear Derailleur Shimano XT M8100 Shadow Plus
Accessories & Extras Cotopaxi Stow Bags
Cassette/Freewheel Shimano XT 10-51

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue Hour / Small / 29-inch 840345310828 RLC1BUSXTI93525
Blue Hour / Medium / 29-inch 840345311269 RLC2BUSXTI93525
Blue Hour / X-Medium / 29-inch 840345311337 RLC3BUSXTI93525
Blue Hour / Large / 29-inch 840345311405 RLC4BUSXTI93525
Blue Hour / X-Large / 29-inch 840345311474 RLC5BUSXTI93525
Green Flash / Small / 29-inch 840345310842 RLC1GNSXTI93525
Green Flash / Medium / 29-inch 840345310927 RLC2GNSXTI93525
Green Flash / X-Medium / 29-inch 840345310996 RLC3GNSXTI93525
Green Flash / Large / 29-inch 840345311061 RLC4GNSXTI93525
Green Flash / X-Large / 29-inch 840345311139 RLC5GNSXTI93525
