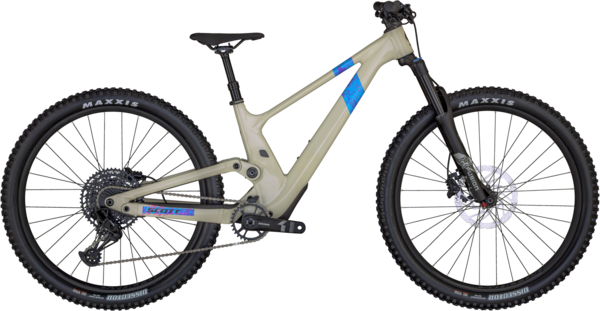

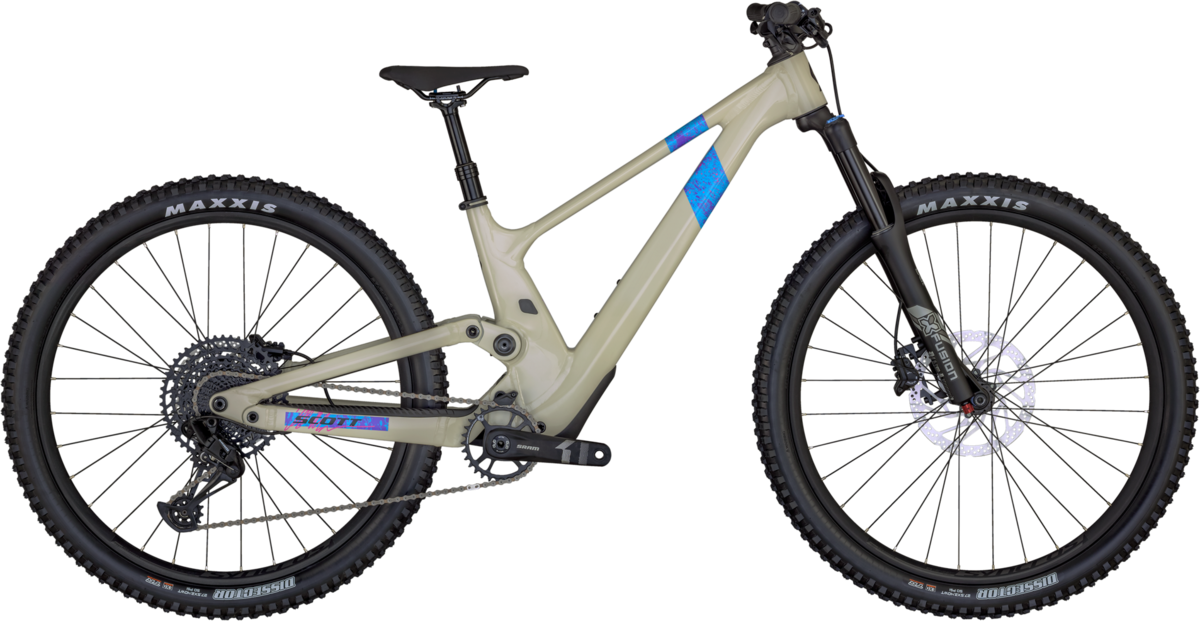

Scott Genius 700
Details
Get into the next league with the all new SCOTT Genius 700! The adult dream bike is now available for the younger generation with 27.5" wheels and 150/120mm of suspension travel front and rear. We took years of integration expertise and adapted it for the next generation of riders. If you think you're ready to handle the most epic trails, this bike could very well be your new best friend. Please note that bike specifications are subject to change without prior notice
Key Features
- Kids from 145cm
- 27.5'' wheels
- Integrated Suspension Technology
- Trail bike for future racer
- 150mm travel fork & rear shock
- SRAM Eagle 12-Speed Drivetrain
Max. System Weight 80kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
| Frame Size | Small |
|---|---|
| Head tube angle | 65.4 ° |
| Head tube length | 90.0 mm |
| Top tube horizontal | 562.7 mm |
| Standover height | 690.0 mm |
| BB offset | -44.5 mm |
| BB height | 313.0 mm |
| Wheel base | 1,185.9 mm |
| BB center to toptube center | 380.0 mm |
| Seat angle | 78.7 ° |
| Chainstay | 440.0 mm |
| Reach | 442.5 mm |
| Stack | 601.9 mm |
| Stem length | 40.0 mm |
| Fork length | 541.0 mm |
| Maximum Seatpost Insertion | 173.0 mm |
| Crank Length | 155.0 mm |
Specs
| Frame | Genius Alloy 6061 Integrated suspension technology Virtual 4 link kinematic / adjustable head angle Syncros cable integration system BB92 / UDH interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | X-Fusion Sweep Boost RC 27.5" tapered / 110x15mm / Air kids tune 150mm travel |
| Rear Shock | X-Fusion 02Pro R Trunnion KIDS vertical valve position / rebound adjuster / Kids tune 150mm travel / 185x55mm |
| Tires | Maxxis Dissector / 27.5x2.4" / 60TPI Foldable Tubeless Ready / EXO |
| Brakes | Shimano BR-MT500 |
| Rims | Syncros X-30S / 32H / 30mm / Sleeve Joint |
| Crankset | SRAM X1 1000 CL55 Eagle DUB / 155mm / 30T |
| Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Shifters | SRAM NX Eagle Trigger / MMX |
| Cassette/Freewheel | SRAM SX Eagle / PG-1210 / 11-50T |
| Rear Derailleur | SRAM SX Eagle 12 Speed |
| Rotors | Shimano SM-RT30 CL / F:203 R:180 |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System -0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Brake Levers | Shimano BL-MT501 |
| Handlebars | Syncros Hixon 2.0 Alloy 6061 D.B. 12mm Rise / back sweep 9° / 740mm Syncros Performance XC lock-on grips |
| Chain | SRAM CN SX Eagle |
| Stem | LEADTEC / 40mm / +/-7° 31.8mm clamp |
| Seatpost | Syncros Dropper Ducan Remote 31.6mm / 80mm / Kid centric custom tune / Remote Lever I-Spec II |
| Saddle | Syncros Future Pro |
| Hubs |
Front: Formula CL-811 / 15x110mm Rear: Formula CL-148S / 12x148mm |
| Spokes | Stainless Black 15G / 1.8mm |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Sand Beige / Small / 27.5-inch | 192820891903 | 293468006 |
